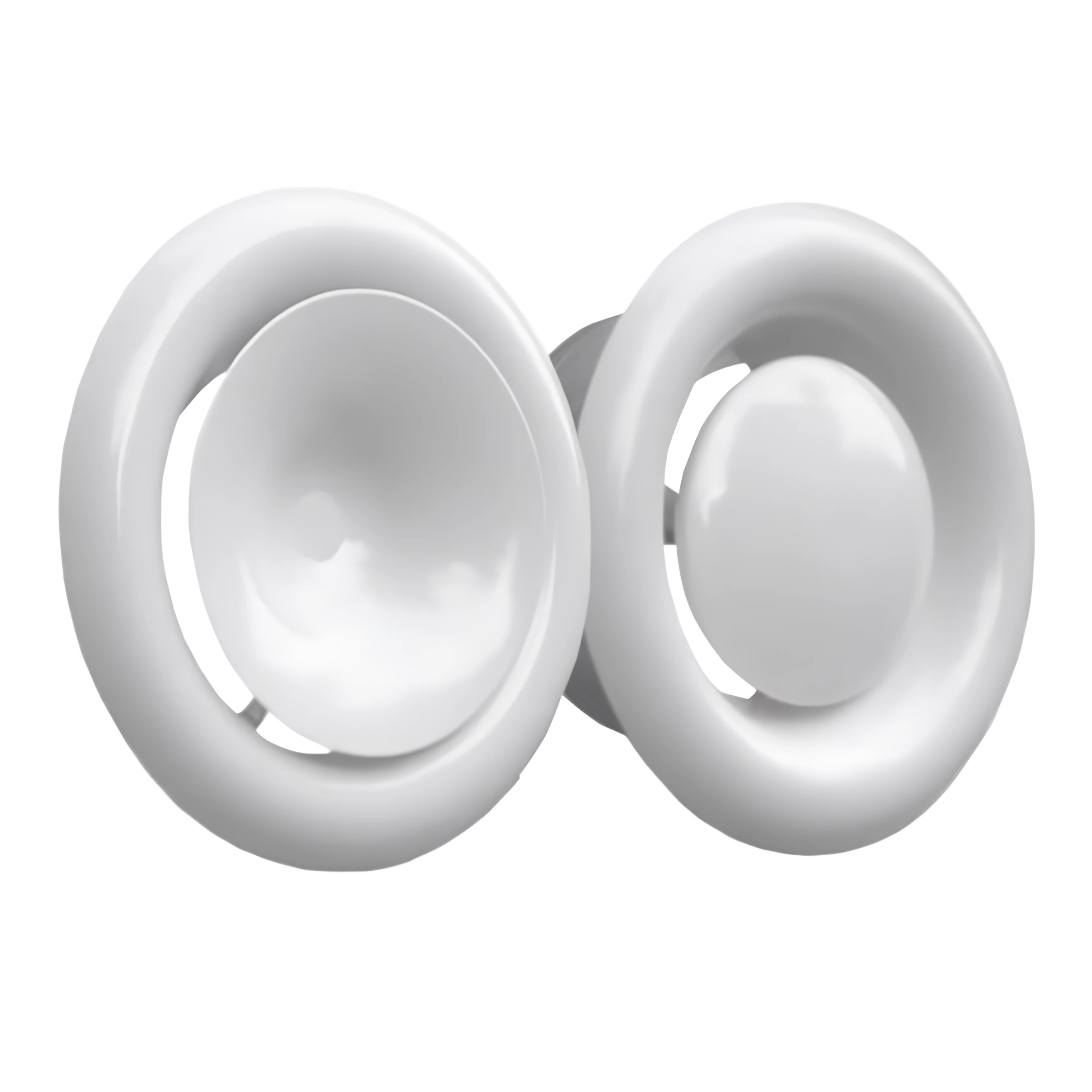

CIRCULAR CEILING DIFFUSERS TYPES DVS AND DVS-P
Circular ceiling-mounted diffusers are designed for air supply and removal by ventilation and air conditioning systems in residential, administrative, public and industrial premises. Air flow control is carried out by rotating the central part of the diffuser (deflector) along the axis of the body until it completely overlaps.
Circular ceiling-mounted diffusers are designed for air supply and removal by ventilation and air conditioning systems in residential, administrative, public and industrial premises. Air flow control is carried out by rotating the central part of the diffuser (deflector) along the axis of the body until it completely overlaps.
The main color of the diffuser cover is white. It is possible to paint another color according to the RAL color catalog. Diffusers can be operated at operating medium temperatures from -40 ° C to + 45 ° C. The environment and air must not contain aggressive gases and vapors that destroy materials and paint coatings of the product. The grilles are manufactured in climatic modifications for operation in areas with moderate У (moderate) и УХЛ (bpreal) climates and location categories 3 and 4 in accordance with GOST 15150.
| Type | ØA | ØB | ØC | ØD | ØE | ØF |
| DVS 100 | 138 | 75 | 40 | 125 | 99 | 97,5 |
| DVS 125 | 164 | 99 | 46 | 150 | 124 | 122,5 |
| DVS 150 | 202 | 119 | 50 | 175 | 149 | 147,5 |
| DVS 160 | 211 | 129 | 54 | 185 | 159 | 157,5 |
| DVS 200 | 248 | 157 | 63 | 225 | 199 | 197,5 |
