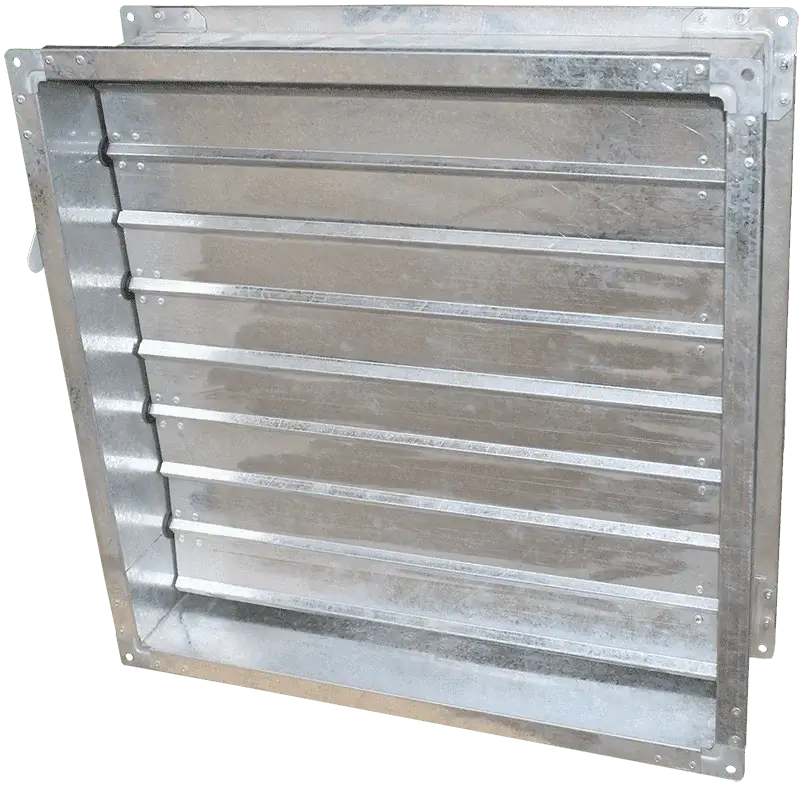

ALL-PURPOSE AIR DAMPER TYPE KVU

The universal air damper type КВУ is designed to regulate the flow rate of supply, recirculated or exhaust air in ventilation and air conditioning systems, as well as to seal the internal volume of ventilation lines.

ALL-PURPOSE AIR DAMPER TYPE KVU

The universal air damper type КВУ is designed to regulate the flow rate of supply, recirculated or exhaust air in ventilation and air conditioning systems, as well as to seal the internal volume of ventilation lines.

The valve consists of a body with connecting flanges, double-walled rotary-type blades installed in it, driven by a system of levers and pulls, an electric (or manual) actuator. When assembled, the valve body forms a flange necessary for attaching it to air ducts or ventilation system equipment. The dampers can be installed both in the vertical and in the horizontal section of the duct.  The valves can be operated at temperatures of the working medium from -40 ° С to + 45 ° С. The environment and air must not contain aggressive gases and vapors that destroy the materials of the product. The valves are manufactured in climatic versions for operation in areas with moderate У(moderate) and УХЛ (boreal) climates and location categories 1, 2, 3 and 4 according to GOST 15150.

Area of clear opening, m2 210 260 310 360 410 460 510 560 610 660 710 760 810 860 910 960 1060 A2
180 230 280 330 380 430 480 530 580 630 680 730 780 830 880 930 1030 A1
150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 1000 A
210 180 150 0,022 0,03 0,037 0,045 0,052 0,06 0,067 0,075 0,082 0,09 0,097 0,105 0,112 0,12 0,127 0,135 0,15
H
e
n
g
h
t
,
m
m
310 310 250 0,037 0,05 0,062 0,075 0,087 0,1 0,112 0,125 0,137 0,15 0,162 0,175 0,187 0,2 0,212 0,225 0,25
460 460 400 0,06 0,08 0,1 0,12 0,14 0,16 0,18 0,2 0,22 0,24 0,26 0,28 0,3 0,32 0,34 0,36 0,4
610 610 550 0,082 0,11 0,137 0,165 0,192 0,22 0,247 0,275 0,302 0,33 0,357 0,385 0,412 0,44 0,467 0,495 0,55
760 760 700 0,105 0,14 0,175 0,21 0,245 0,28 0,315 0,35 0,385 0,42 0,455 0,49 0,525 0,56 0,595 0,63 0,7
860 860 800 0,12 0,16 0,2 0,24 0,28 0,32 0,36 0,4 0,44 0,48 0,52 0,56 0,6 0,64 0,68 0,72 0,8
960 960 900 0,135 0,18 0,225 0,27 0,315 0,36 0,405 0,45 0,495 0,54 0,585 0,63 0,675 0,72 0,765 0,81 0,9
1060 1060 1000 0,15 0,2 0,25 0,3 0,35 0,4 0,45 0,5 0,55 0,6 0,65 0,7 0,75 0,8 0,85 0,9 1,0
B1 B2 B Length, mm
