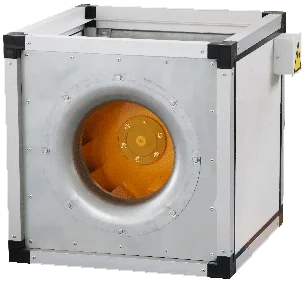

DUCT FAN ВКК-КХ
The kitchen air-exhauster fan is designed for removing air with a high moisture and grease content, for example in kitchens. The maximum temperature of transported air is 120 ° C.
The kitchen air-exhauster fan is designed for removing air with a high moisture and grease content, for example in kitchens. The maximum temperature of transported air is 120 ° C.
Analogy: ВКEF-R, КУБ-НКХ.
| Model | Engine | Operating space parameters (for synchronous engine frequency) | A | B | weight, kg not more than | |||
| Make | Capacity, kW | Rotational frequency, rpm | Performance Ths. m3/h | Total pressure, Pa | ||||
| ВКК-КХ 45-3,15 | АИР63А4 | 0,25 | 1500 | 0,85-1,85 | 170-300 | 670 | 670 | 42 |
| АИР63В4 | 0,37 | 1500 | 0,8-2,2 | 190-410 | ||||
| ВКК-KX 56-4 | АИР71А4 | 0,55 | 1500 | 1,6-3,8 | 220-500 | 670 | 670 | 55 |
| АИР71В4 | 0,75 | 1500 | 2,2-4,1 | 300-500 | ||||
| ВКК-KX 80-5 | АИР90L4 | 2,2 | 1500 | 4,3-8,6 | 500-810 | 900 | 800 | 95 |
| АИР100S4 | 3 | 1500 | 3,5-9,0 | 500-1180 | ||||
