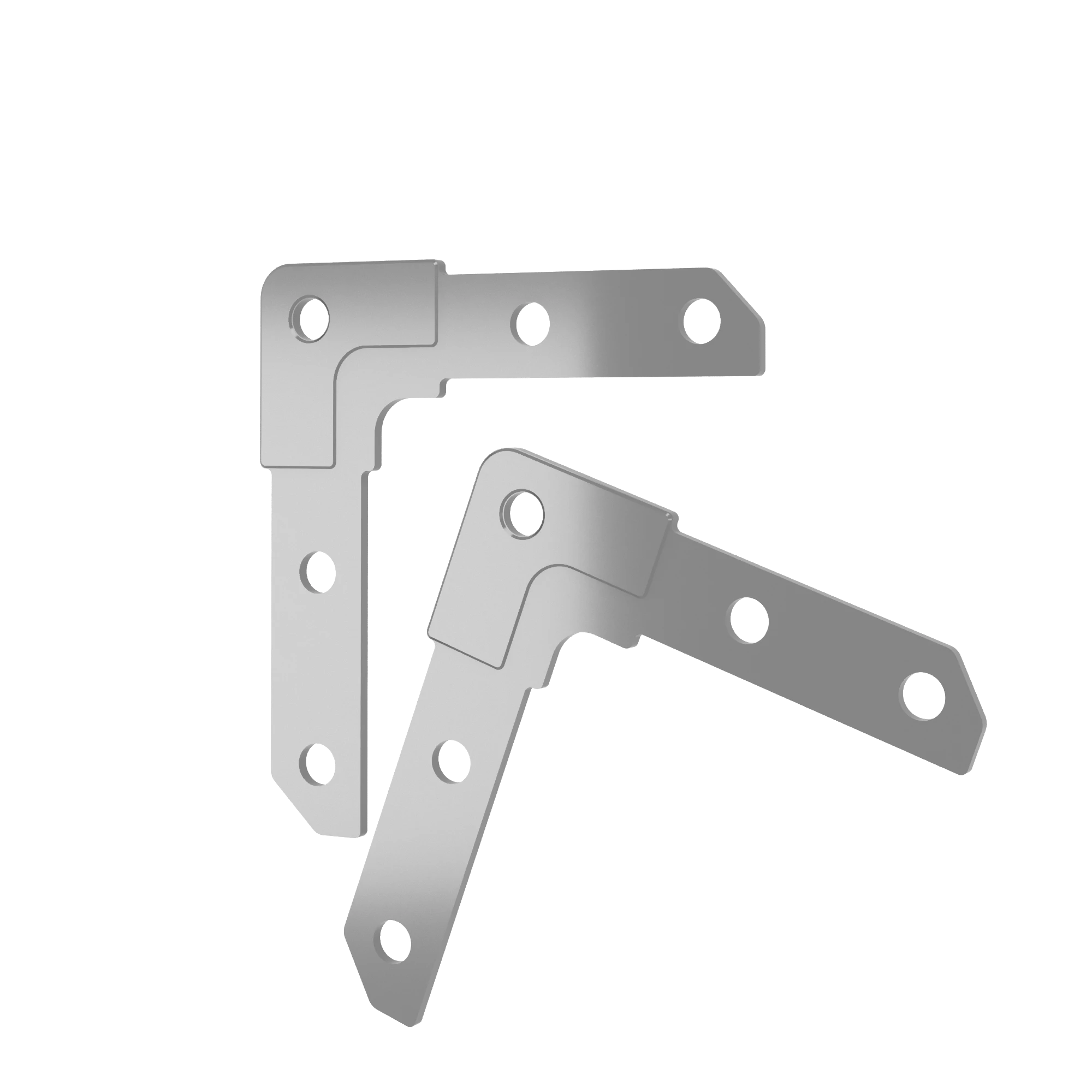

MOUNTING ANGLE
Mounting angle type УГФ is used for the fabtication of flanged frames for rectangular ventilation ducts. The angle serves as a connecting item for the adjacent sides of the box frame. After installation, the air ducts are connected to each other through the central fixing holes in the angle with bolts.
Mounting angle type УГФ is used for the fabtication of flanged frames for rectangular ventilation ducts. The angle serves as a connecting item for the adjacent sides of the box frame. After installation, the air ducts are connected to each other through the central fixing holes in the angle with bolts.
| Desig-on | Dimensions, mm | |||
| A | B | C | d | |
| УГФ-1 95х18 | 95 | 35 | 18 | 9 |
| УГФ-2 105х27 | 105 | 42 | 27 | 11 |
