PRESSURE RELIEF DAMPERS КИД

Pressure relief dampers КИД is a pressure relief flap valve designed for controlled pressure release of excess pressure for the area served by this damper.

PRESSURE RELIEF DAMPERS КИД

Pressure relief dampers КИД is a pressure relief flap valve designed for controlled pressure release of excess pressure for the area served by this damper.

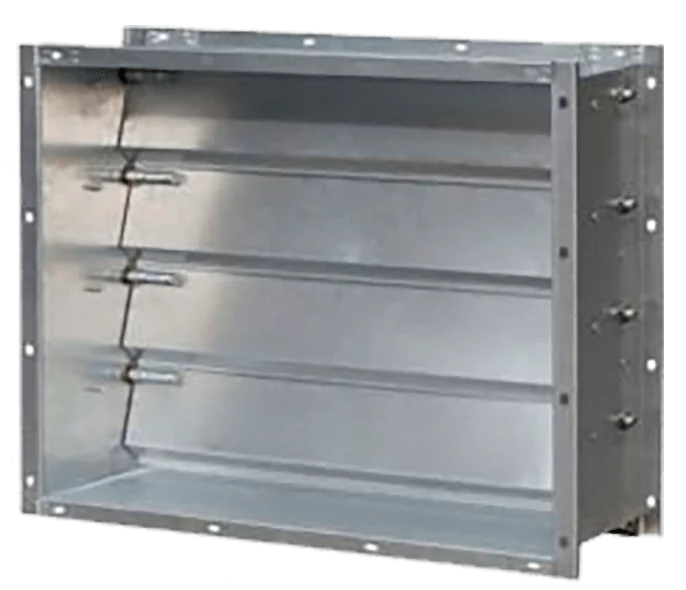

Pressure relief damper КИД consists of a four-walled box-shaped casing and blades, installed in the casing on axle shafts and made of steel.

For synchronous actuation, the valve blades are connected by a system of levers and rods. To adjust the valve opening pressure, a special spring mechanism is provided, which is located inside (for designs 1 and 2) or outside (for design 3) the damper.

The valves are strictly installed in a vertical position.

Non-return dampers can be operated at medium temperatures from -40°C to +45°C.

The valves are designed for operation in rooms with an environment that does not contain aggressive vapors and gases in concentrations that destroy metals, paint and lacquers.

Non-return dampers are manufactured in climatic versions for operation in areas with moderate У(moderate) and УХЛ (boreal) climates and location categories 1, 2, 3 and 4 according to GOST 15150.

Designation Dimensions, mm
AxB A1 B1 L
КИД 150х150 180 180 200
200х200 230 230
250х200 280
300х200 330
250х250 280 280
300х250 330
400х250 430
300х300 330 330
400х300 430
400х400 430 430 150
500х400 530
600х600 630 630
700х700 730 730
800х800 830 830
900х900 930 930
1000х1000 1030 1030
